Egy szabvány 100mm-es gránát 1100mm körül van típustól függően, a BMP 100mm-es lőszere meg nem sokkal hosszabb mint egy másfél literes ásványvvizes flakon.
Aham....

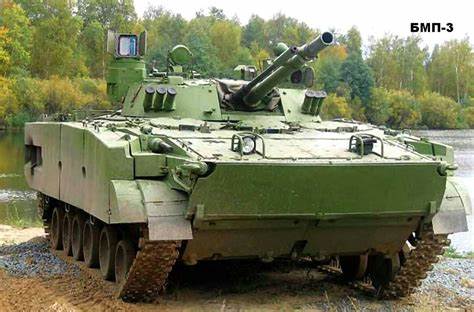

The first 100mm round available to the original BMP-3. The cartridge includes a 3OF32 HE-Frag shell directly transplanted from the 100mm 3UOF11 cartridge, which was used in the D-10T cannon on the T-54 series of tanks beginning from 1970's. As such, the BMP-3 can be said to possess the firepower of a tank to some degree.
Muzzle velocity: 250 m/s
Firing range: 4,000 m (Direct)
Maximum firing distance: 8,000 m (Indirect)
Chamber Pressure:
At 15 degrees (C) ambient Temperature: 1870 kgf/sq.cm
At 50 degrees (C) ambient Temperature: 2200 kgf/sq.cm
Fuze: 3B35 Impact Fuze
Complete round mass: 18.1 kg
Shell mass: 15.6 kg
Explosive mass: 1.7 kg
Number of Preformed Fragments and Their Mass:
With a mass of not less than 0.5 g: 1,993
With a mass of 0.5 g to 2 g: 814
With a mass of 2 g to 15 g: 928
With a mass exceeding 15 g: 251
Statistical Average Mass of Fragmentation: 6.2 g
Velocity of Fragments and Ratio of Fragment Velocities:
100% - 1,040 m/s
90% - 1,060 m/s
80% - 1,080 m/s
Nominal kill zone: 200 sq.m
